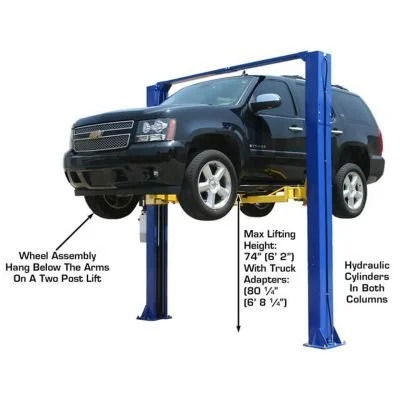

Overhead two post. Arms set up symmetric or asymmetric, and it comes in two height settings.
Capacity 9,000 lb
Overall floor width 134.5 in
Overall height 138 in or 142 in
Max lifting height 74.5 in, up to 81 in with the adapters
Min arm height 4 in
Drive thru width 100 in symmetric, 90.5 in asymmetric
Between columns 110 in
Column 7.25 in by 11 in
Base plate 14.25 in by 18 in
Motor 220V single phase, 30 amp breaker
Ships at 1,450 lb
Needs 4 in of 3,000 psi concrete
Comes with a free 8 piece truck adapter set and a free set of sliding arm adapters. Hydraulic oil not included, takes 3 to 5 gallons of AW32 or AW46.
2 year structural and 1 year hydraulic warranty, parts only.
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.
