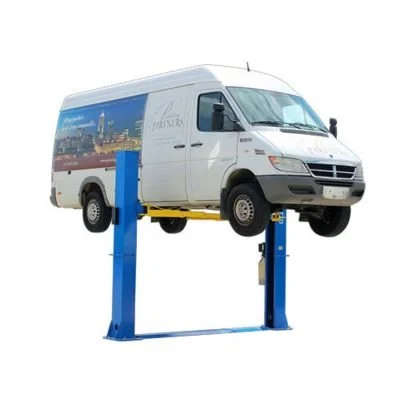

The Atlas BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.
Features and Benefits:
10,000 lb. Capacity
Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 111 7/8" (9' 3 7/8")
Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
Super-Symmetric Arms
Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
Welded Support Gussets Increase Column Strength.
Automatic Arm Restraints
Powder Coat Finish
Free 12 Piece Truck Adapter Set
Shipping Weight: 1,640 LBS.
5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
Atlas ATTD-BP10000X Specifications
Capacity: 10,000 LB.

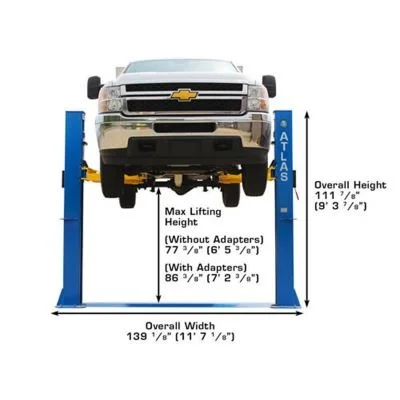

Overall Height: 111 7/8" (9' 3 7/8")
Overall Floor Width: 139 1/8" (11' 7 1/8")
Outside Column to Outside Column: 134 1/2" (11' 2 1/2")
Maximum Lift Height (Without Adapters): 77 3/8"
Maximum Lift Height (With Adapters): 86 3/8"
Minimum Arm Height: 4"
Inside Column: 112 1/4” (9' 4 1/4”)
Drive Thru: 101 1/4” (8' 5 1/4”)
Column Size: 9 1/2" x 11"
Base Of Lift: 17 1/2" x 21 1/2"
Motor/Electrical Requirement: 220 volt single (1) phase.A 30 amp breaker is recommended
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight: 1,640 LBS.
Adapter Heights: 4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size: 1.5”
Requires a minimum of 4" of concrete with a 3000 psi. rating
