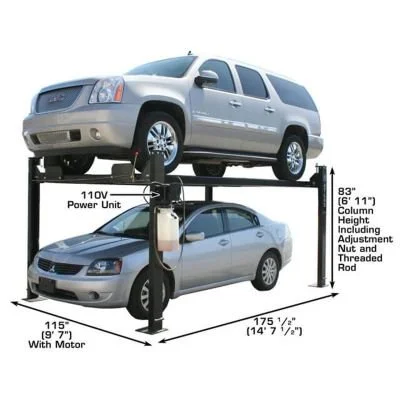

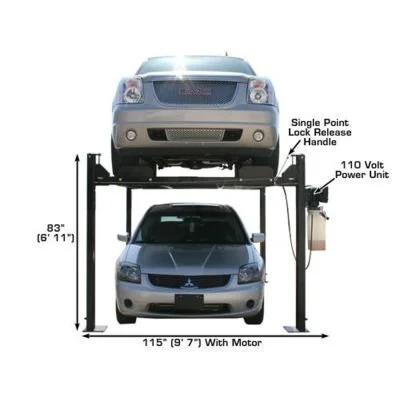

Four post storage and service lift. Comes loaded.
Capacity 8,000 lb
Overall 206.75 in long with the ramp
Overall 104.5 in wide without the motor, 115 in with
Column height 83 in
Max lifting height 72 in to the top of the runway
Clearance under the runways 67 in
Drive thru width 80.5 in outside tire to outside tire
Runway 165.75 in long
Runway 21.5 in wide, 18.75 in driving surface
Between runways 37 in
Clearance between columns 94.5 in
Max wheelbase 153.5 in
Motor 110V on a 30 amp breaker
Ships at 1,800 lb
Comes with caster kit, steel approach ramps, steel jack tray, 4 drip trays, 4 wheel stops and 2 wheel chocks.
2 year structural and 1 year hydraulic warranty, parts only.
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.
