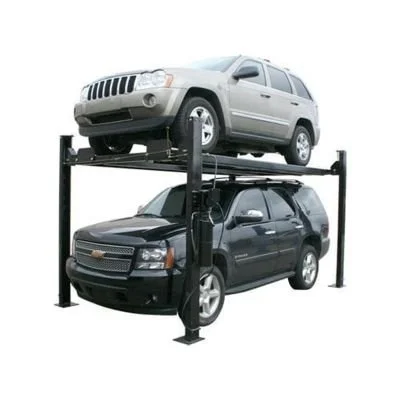

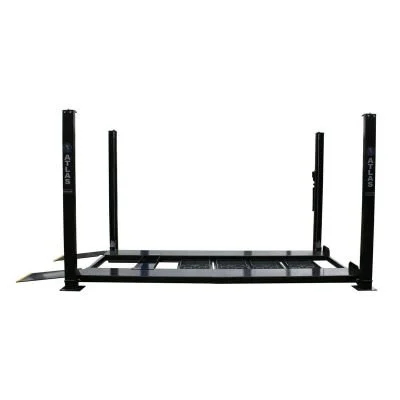

Same lift as the PRO8000 with taller columns. More room to park underneath.
Capacity 8,000 lb
Overall 206.75 in long with the ramp
Overall 104.5 in wide without the motor, 115 in with
Column height 98.5 in
Max lifting height 84.25 in to the top of the runway
Clearance under the runways 79 in
Drive thru width 80.5 in outside tire to outside tire
Runway 165.75 in long
Runway 21.25 in wide, 18.75 in driving surface
Between runways 37 in
Motor 110V on a 30 amp breaker
Ships at 1,850 lb
Comes with caster kit, steel approach ramps, steel jack tray, 4 drip trays, 4 wheel stops and 2 wheel chocks.
2 year structural and 1 year hydraulic warranty, parts only.
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.
