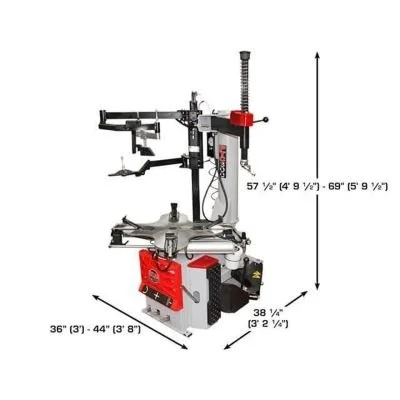

Atlas Automotive Equipment Platinum PTC300 Rim-Clamp Tire Changer with Assist Arm

Features and Benefits:

• Platinum Rim Clamp/Swing Arm Tire Changer

• Left Hand Assist Arm Included

• Extra-Large Star-Shaped Turntable

• Air operated jaws & bead breaker (external air supply required)

• Electric turntable

• Metal mount/demount head w/ replaceable plastic inserts

• Column mounted inflator box w/ gauge Included

• Filter/Regulator/Lubricator Included

• Tire Tool Included

• Lube Bucket with Brush Included

• Set of Large Plastic Jaw Covers Included

• Plastic Cover for Bead Breaker Shovel Included

• Multiple Replacement Plastic Inserts for M/D Head Included

• Built in “Beadblaster”

• Replacement Parts & Wear Items Always in Stock

• 2 Year Parts Only Warranty

Atlas Platinum PTC300 Specifications

• Rims: Steel, Aluminum, Alloy

• External Locking Rim Dimension: 10" - 24"

• Internal Locking Rim Dimension: 12" - 26"

• Maximum Tire Diameter: 43"

• Maximum Wheel Width (Bead Breaker): 15"

• Turntable Rotating Speed: 7 RPM

• Bead Breaker: 6,924 LB. Force

• Air Requirement: 120-145 PSI

• Operating Voltage: 110volt

• Shipping Weight: 620 lbs.

The Atlas Platinum PTC300 represents the evolution of the most familiar tire changer configuration found in high volume tire shops around the world. The PTC300 is an Italian engineered Swing-Arm Tire Changer that comes standard with a Left-Hand Bead Pressing and Bead Lifting Assist Arm to make changing the most challenging tires a breeze. The PTC300 boasts a 26-inch clamping capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, integrated bead blast system, and a 2-year warranty. The Atlas Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point. The Atlas PTC300 requires some assembly after purchase.
