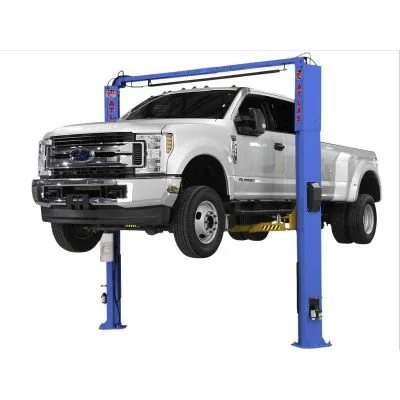

ALI certified overhead two post. Sets up symmetric or asymmetric.
Capacity 10,000 lb
ALI certified

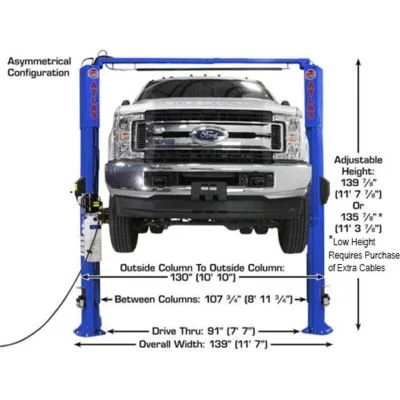

Overall width 139 in asymmetric, 137.5 in symmetric
Overall height 139.9 in, cylinders extend to 148 in
Low height setting 135.9 in, needs the short cables sold separately
Max lifting height 72.5 in, up to 81.5 in with the adapters
Min pad height 4 in
Drive thru width 91 in asymmetric, 99.5 in symmetric
Between columns 107.75 in asymmetric, 112.5 in symmetric
Column 7 in by 10.25 in
Base plate 15 in by 18 in
3 stage front arms and 2 stage rear arms
Motor 220V single phase, 30 amp breaker
Ships at 1,850 lb
Needs 4 in of 3,000 psi concrete
Comes with a free 8 piece truck adapter set and double screw up adapters. Premium ALLY power unit.
5 year structural, 2 year hydraulic and 2 year power unit warranty.
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.
