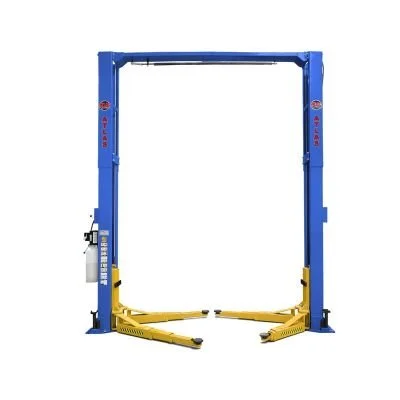

ALI certified overhead two post rated for 12,000 lb. Two height settings.
Capacity 12,000 lb
ALI certified
Overall width 150.4 in

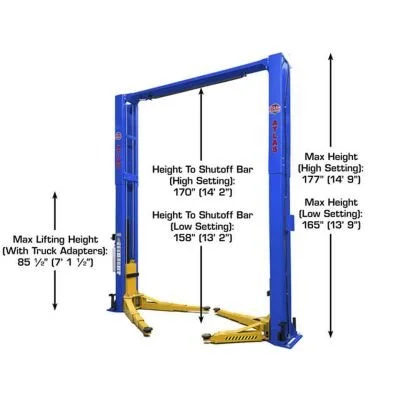

Overall height 165 in or 177 in
Max lifting height 73.6 in, up to 85.5 in with the adapters
Min pad height 4.5 in
Drive thru width 109.5 in
Between columns 122.6 in
Column 7.5 in by 14.5 in
Base plate 17.5 in by 20.5 in
3 stage symmetric arms
Motor 220V single phase, 30 amp breaker
Ships at 2,425 lb
Needs 6 in of 3,000 psi concrete
Comes with a free 8 piece truck adapter set. Premium ALLY power unit.
5 year structural, 2 year hydraulic and 2 year power unit warranty.
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.
