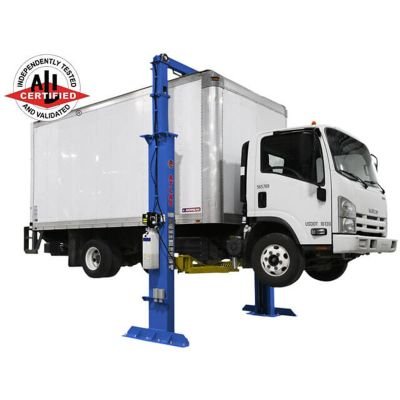

ALI certified overhead two post rated for 15,000 lb. The heaviest lift we carry.
Capacity 15,000 lb
ALI certified

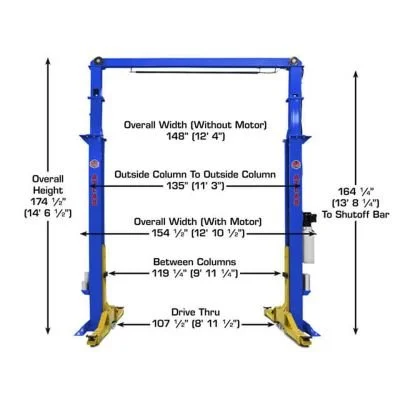

Overall width 148 in
Overall height 174.5 in
Max lifting height 72.75 in, up to 87.5 in with the adapters
Min pad height 6 in
Drive thru width 107.5 in
Between columns 119.25 in
Column 8 in by 14.5 in
Base plate 21 in by 48 in
Symmetric arms
Motor 220V single phase, 30 amp breaker
Ships at 2,600 lb
Needs 6 in of 3,000 psi concrete
Comes with a free 8 piece truck adapter set and 4 screw up frame adapters. Premium ALLY power unit. A 2 ft height extension kit is available.
5 year structural, 2 year hydraulic and 2 year power unit warranty.
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.
