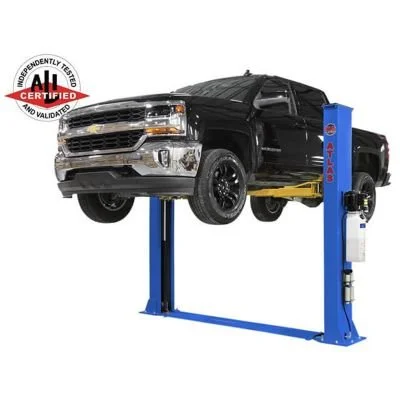

ALI certified base plate two post. Low column height for a lower ceiling.
Capacity 9,000 lb
ALI certified

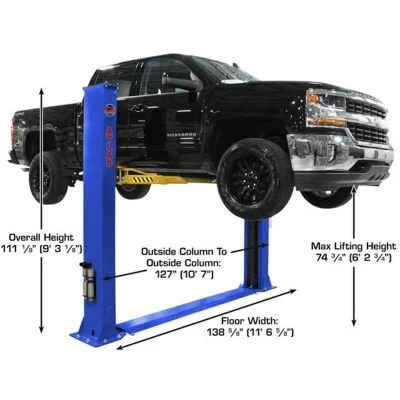

Overall width 138.6 in
Overall height 111.1 in
Max lifting height 74.75 in, up to 83.75 in with the adapters
Min pad height 4.5 in
Drive thru width 97.6 in
Between columns 111.4 in
Column 7.6 in by 14.25 in
Base plate 19.5 in by 20.5 in
3 stage symmetric arms
Motor 220V single phase, 30 amp breaker
Ships at 1,700 lb
Needs 4 in of 3,000 psi concrete
Comes with a free 8 piece truck adapter set and double screw up adapters. Premium ALLY power unit.
5 year structural, 2 year hydraulic and 2 year power unit warranty.
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.
