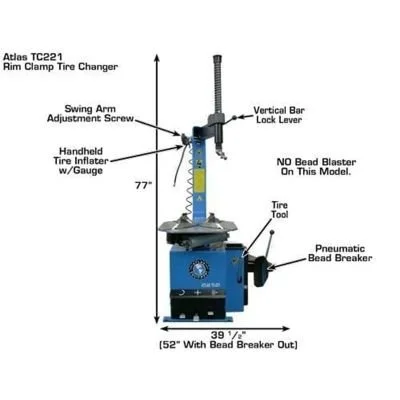

Rim clamp tire changer for everyday car and light truck work.
External clamping 9.75 to 23.25 in
Internal clamping 11.63 to 25.25 in
Max tire diameter 39 in
Max wheel width 13 in
Bead breaker force 5,500 lb
Table motor 1 HP 110V
Needs 90 to 110 PSI shop air
Never exceed 140 PSI
Ships at 500 lb
Warranty 1 year parts
Clamping is set in three positions on the turntable. The ranges above are the full span across all three, so the largest rims only clamp in the widest position. You supply the air, a compressor is not included. An assist arm is not part of this machine.
We deliver and set it up anywhere in Arizona. Call or text us with your bay and we will make sure it is the right machine for your shop.
