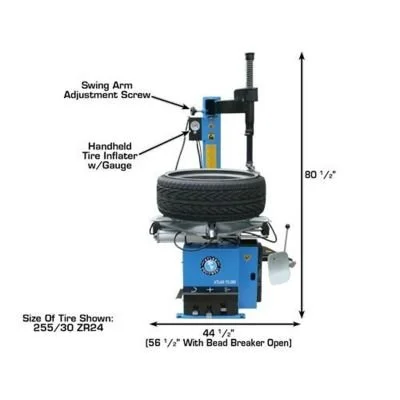

Extra large rim clamp changer. Built for oversized truck and off road wheels.
External clamping 11.88 to 28 in
Internal clamping 13.88 to 29.88 in
Max tire diameter 47 in
Max wheel width 14.75 in in position 1
Max wheel width 18.5 in in position 2
Bead breaker force 5,500 lb
Turntable torque 885 ft lb
Table motor 1 HP 110V
Needs 90 to 110 PSI shop air
Never exceed 140 PSI
Ships at 620 lb
Warranty 1 year parts
Clamping is set in three positions on the turntable. The ranges above are the full span across all three, so the largest rims only clamp in the widest position. You supply the air, a compressor is not included. The Atlas 200 and 700 series left hand assist arm fits this machine but is sold separately.
We deliver and set it up anywhere in Arizona. Call or text us with your bay and we will make sure it is the right machine for your shop.
