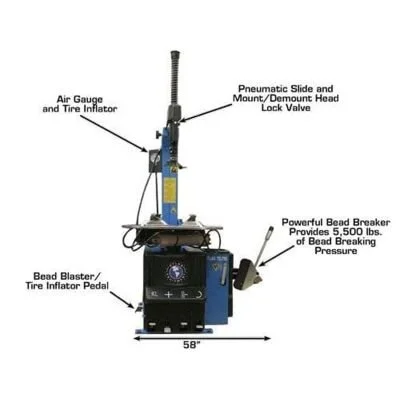

Tilt back rim clamp changer with a BeadBlaster. Same big clamping range as the TC289 in a tilt back tower.
External clamping 11.88 to 28 in
Internal clamping 13.88 to 29.88 in
Max tire diameter 47 in
Max wheel width 18 in
Bead breaker force 5,500 lb
Turntable torque 885 ft lb
Table motor 1 HP 110V
Needs 90 to 110 PSI shop air
Never exceed 140 PSI
Ships at 650 lb
Warranty 1 year parts
Clamping is set in three positions on the turntable. The ranges above are the full span across all three, so the largest rims only clamp in the widest position. Atlas says it clamps most 26 in chrome rims without adapters. You supply the air, a compressor is not included. An assist arm is not included, and we can quote you the E-Z assist arm or the dual assist arm package with it.
We deliver and set it up anywhere in Arizona. Call or text us with your bay and we will make sure it is the right machine for your shop.
