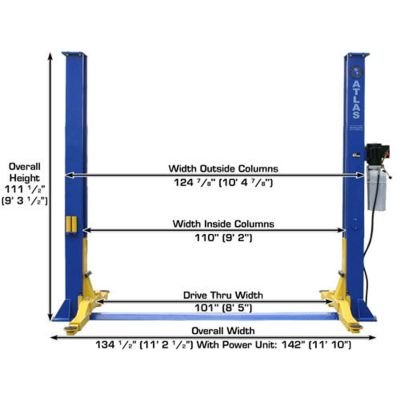

Base plate two post. Atlas says it fits a garage with a ceiling as low as 9 ft 6 in.
Capacity 9,000 lb
Overall floor width 134.5 in
Overall height 111.5 in
Max lifting height 74.5 in, up to 81 in with the adapters
Min arm height 4 in
Drive thru width 101 in
Between columns 110 in
Column 7.25 in by 11 in
Base plate 14.25 in by 18.25 in
Symmetric arms
Motor 220V single phase, 30 amp breaker
Ships at 1,400 lb
Needs 4 in of 3,000 psi concrete
Comes with a free 8 piece truck adapter set. Hydraulic oil not included, takes 3 to 5 gallons of AW32 or AW46.
2 year structural and 1 year hydraulic warranty, parts only.
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.
