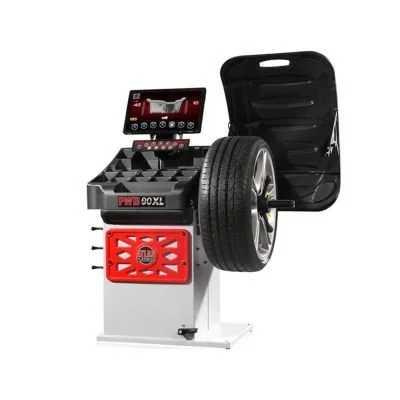

Platinum 3D Video Motorized Spin Balancer
Italian Engineering and Components
High-Resolution Video Monitor Display
Super Automatic 3D Data Entry (touchless sonar to measure rim width)
Laser Line to guide weight placement
LED light illuminates wheel interior
Static and dynamic balancing modes.
Optimatch, FES (Split), OPF (Opposite Position) Functions
Special ALU-S and other ALU Programs
NWN (no wheel need) System
Self-Diagnosing and Self-calibrating
USB hub for firmware update through PC/Notebook
Exceptional stability in reading the unbalance between planes.
Display in grams or ounces, and in mm or inches.
No anchor-down installation needed
Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Replacement Parts & Wear Items Always in Stock
2 Year Parts Only Warranty
Atlas Platinum PWB90XL Specifications
Max Tire Diameter: 43"
Rim Sizes (Cars And Light Trucks): 10"-30"
Rim Width: 1 1/2"-20"
Shaft Size: 40mm
Max. Wheel Weight: 165 lbs.
Balancing Speed: 130 rpm
Data Entry: Super Automatic 3D
Measurements: Standard Or Metric
Accuracy: 1 gram
Weight Position Resolution: 1.4 Degrees
Self Calibration: Yes
Cycle Time: 7 seconds
Power Supply: 110volt
Shipping Weight: 290 lbs.
The Atlas Platinum PWB90XL features Super Automatic 3D Data Entry via a single data entry gauge for offset and diameter, and touchless sonar for rim width (no old-fashioned measuring arm). Using the weight placement arm, the user can choose the most convenient location to put the weights, and a Laser Line guides the operator back to the exact location after the spin cycle, eliminating any possibility for human error and ensuring first time zero/zero results. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows the operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB90XL via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient. Make no mistake, the PWB90XL is a real top of the line wheel balancer, competing with those big name brands seen as the benchmark for premium quality. This model guarantees speed, accuracy, and a long life by combining Italian engineering and components with the Factory Direct Value that Atlas is known for around the World.
