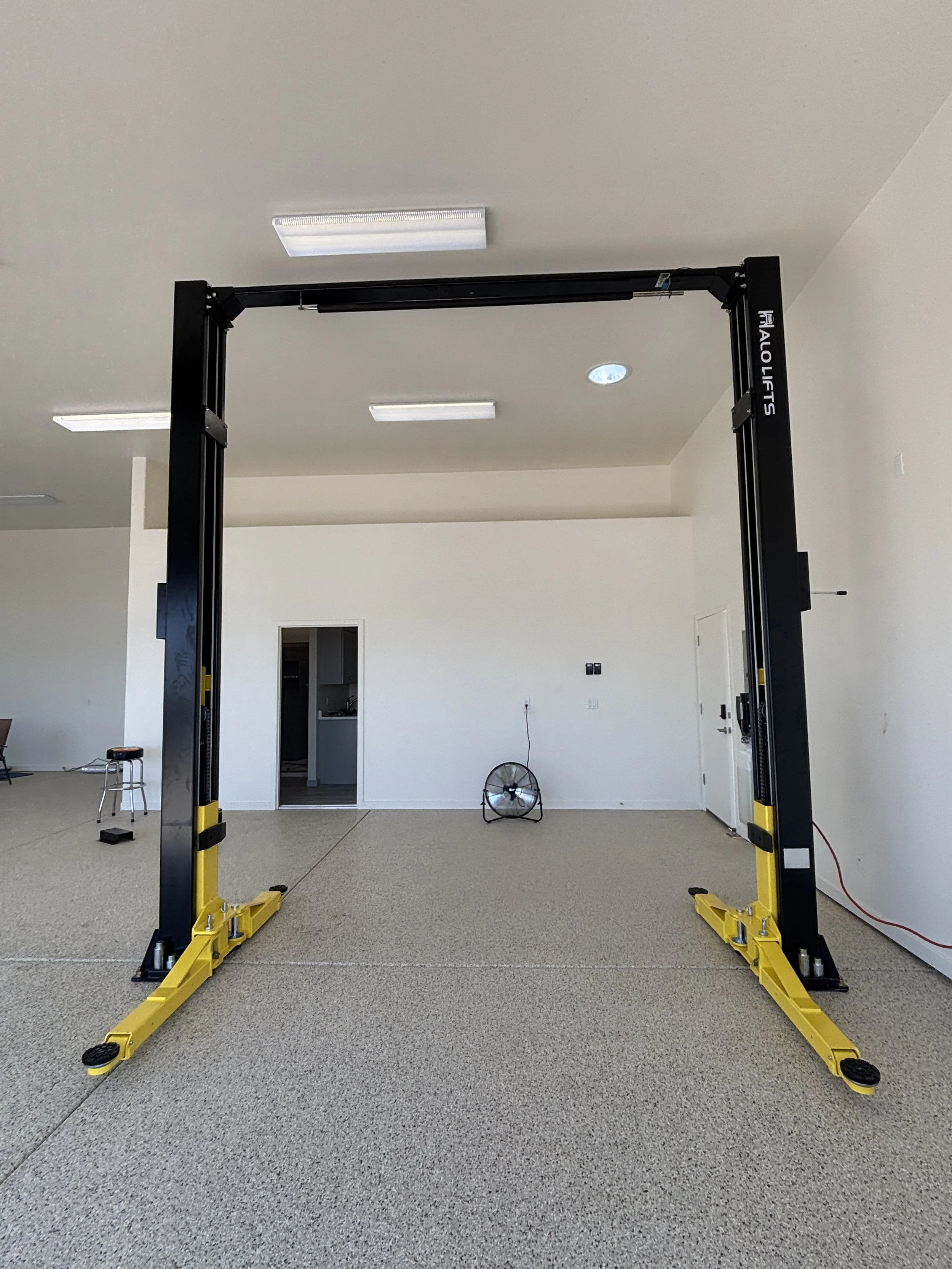

Clear floor two post. Nothing across the floor so you can roll a jack straight under.
Capacity 10,000 lb

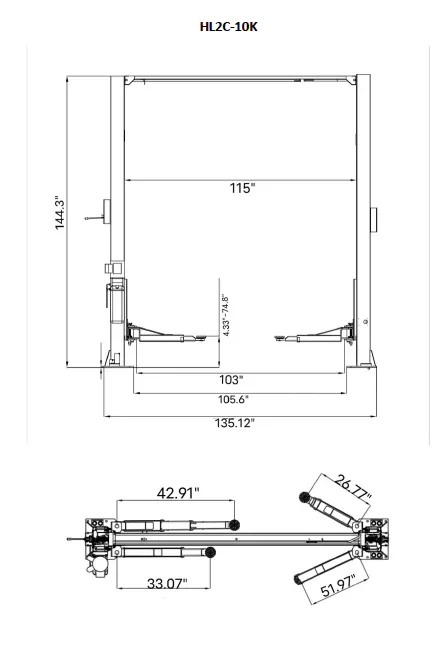

Overall 135.12 in wide by 144.3 in tall
Max lifting height 74 in
Lowered height 4.33 in
Drive thru width 103 in
Between posts 115 in
Column 11 in by 7 in
Motor 3 HP 220V single phase, hard wired
Ships at 1,350 lb
Needs 4.25 in of 3,000 psi concrete
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.
