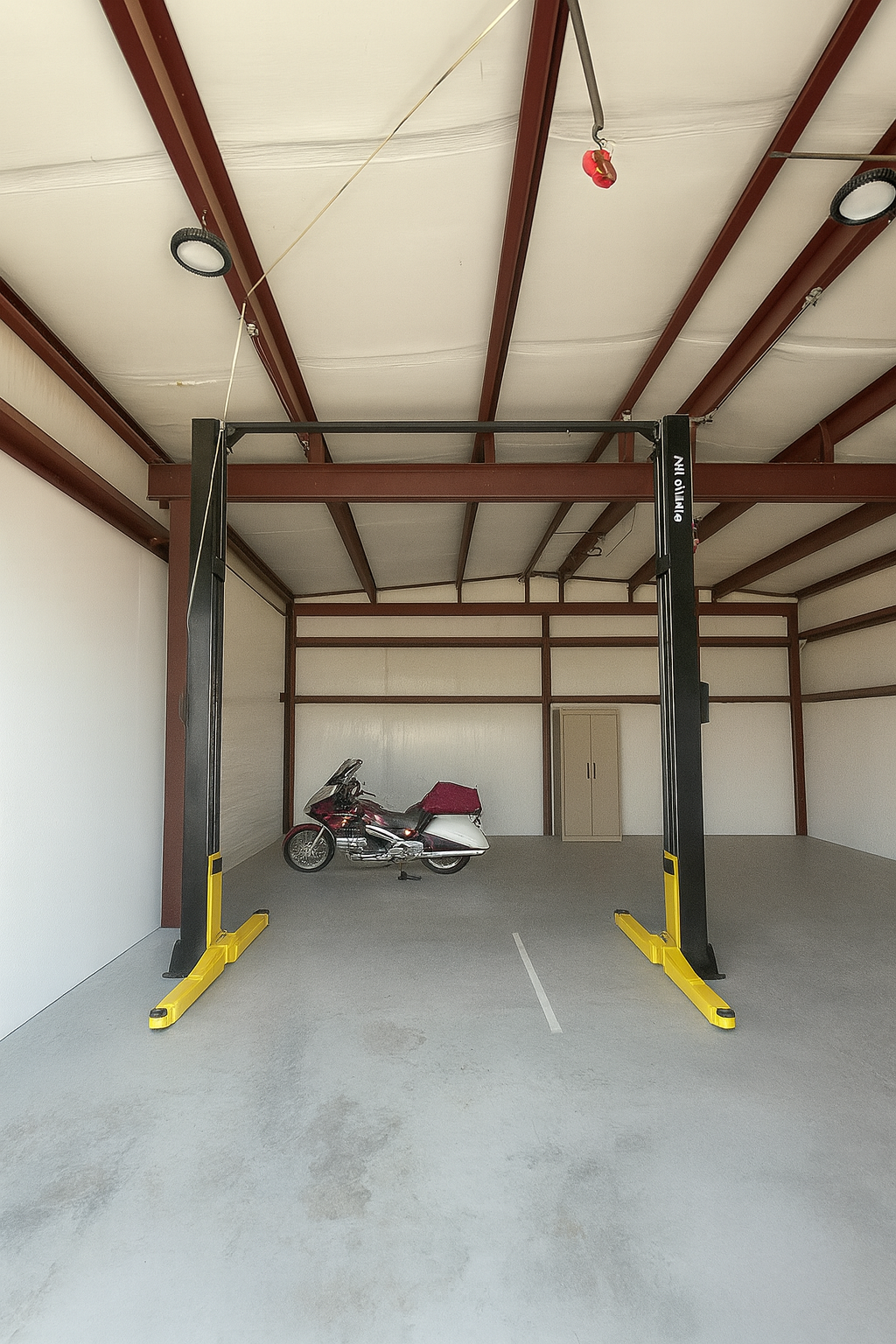

Clear floor two post rated for 12,000 lb. Needs the ceiling height but leaves the floor open.
Capacity 12,000 lb

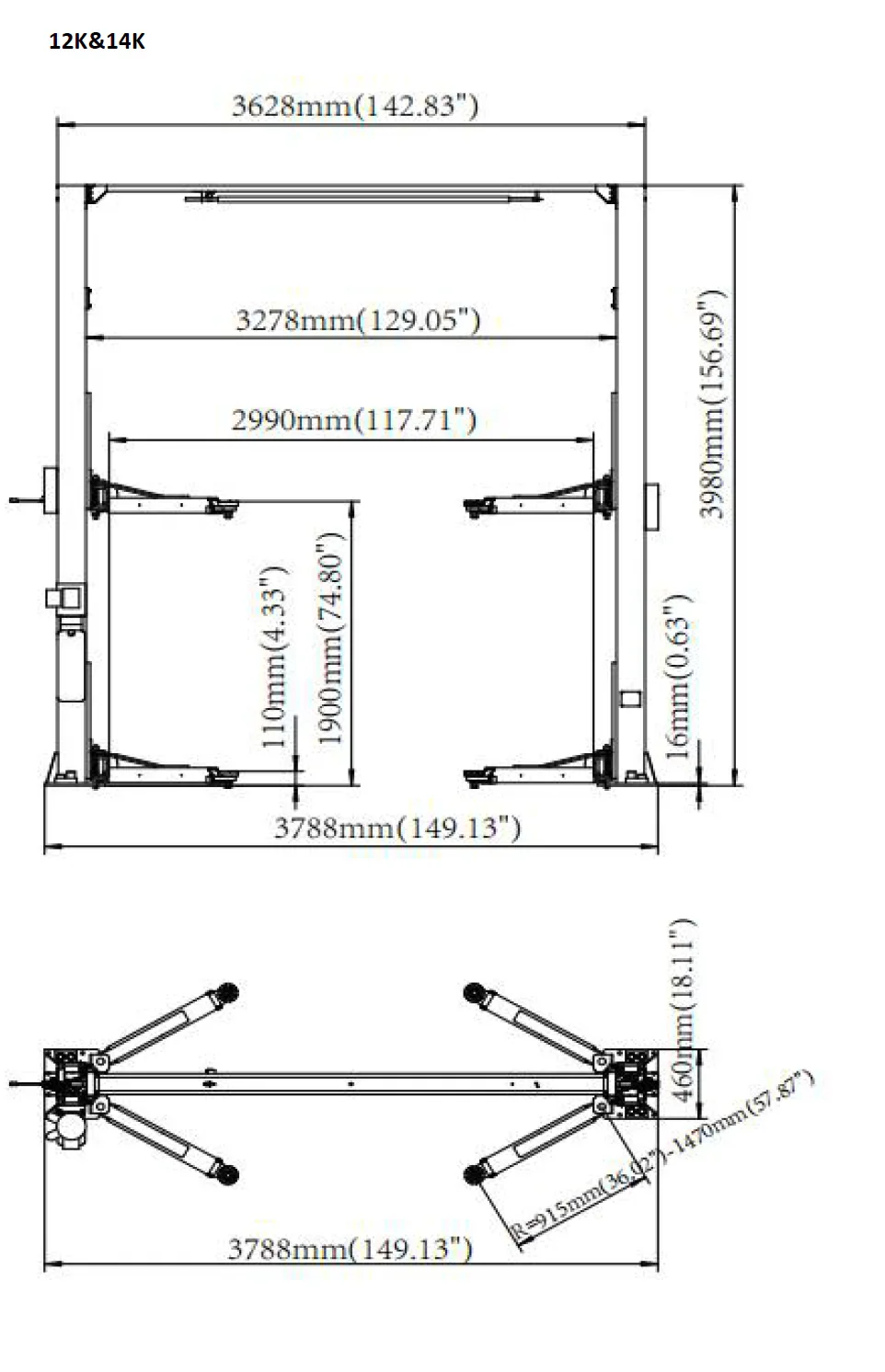

Overall 149.1 in wide by 156.7 in tall
Max lifting height 74 in
Lowered height 5 to 5.5 in
Drive thru width 117.7 in
Between posts 129 in
Column 11 in by 7 in
Motor 4 HP 220V single phase, hard wired
Ships at 1,520 lb
Needs 6 in of 3,000 psi concrete
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.
