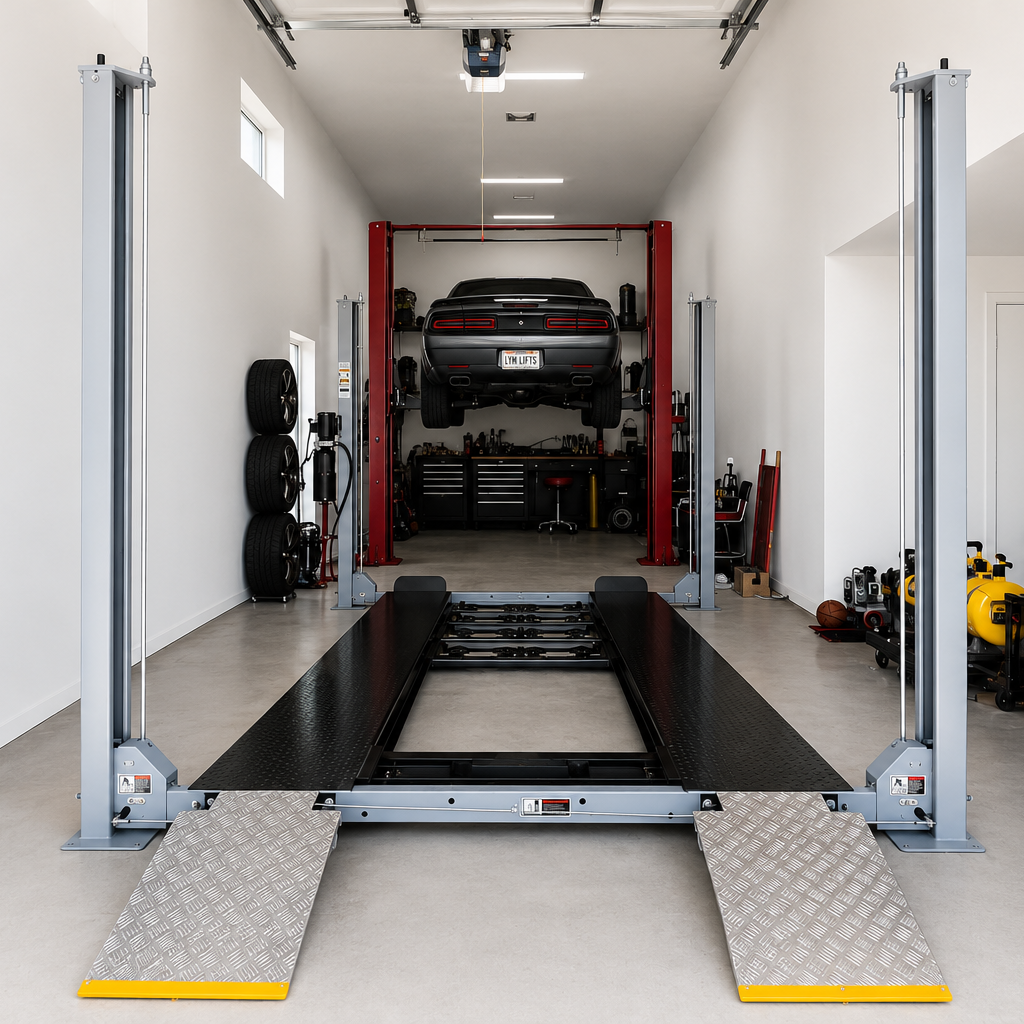

Quick lift USA 9000 XL Four post

$4,249.00

The XL four post. Longer and taller than the 8000.
Capacity 9,000 lb
Overall 226.75 in long with ramps, 194.5 in without
Overall 117.75 in wide with the motor, 106.75 in without
Overall height 97.5 in
Max lifting height 86.6 in
Min platform height 5.1 in
Drive thru clearance 98 in under the lift
Drive under on the top lock 81 in
Runway 185 in long by 20 in wide
Between runways 38 in
11 lock positions
Motor 110V on a 20 amp circuit
3,000 psi concrete
Comes with 4 drip trays, sliding tool tray, HD caster kit, 3/8 in cables and aluminum ramps. Jacking beam sold separately.
2 year manufacturer warranty, wearables excluded.
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.

The XL four post. Longer and taller than the 8000.
Capacity 9,000 lb
Overall 226.75 in long with ramps, 194.5 in without
Overall 117.75 in wide with the motor, 106.75 in without
Overall height 97.5 in
Max lifting height 86.6 in
Min platform height 5.1 in
Drive thru clearance 98 in under the lift
Drive under on the top lock 81 in
Runway 185 in long by 20 in wide
Between runways 38 in
11 lock positions
Motor 110V on a 20 amp circuit
3,000 psi concrete
Comes with 4 drip trays, sliding tool tray, HD caster kit, 3/8 in cables and aluminum ramps. Jacking beam sold separately.
2 year manufacturer warranty, wearables excluded.
We deliver and install anywhere in Arizona. Tell us your ceiling height and what you drive and we will tell you if it fits.

Dimensions XL LUXE 9K

Overall Height97.5"

Overall Width W/ Motor117.75"

Overall Width W/O Motor106.75"

Overall Width W/ Turn bracket108"

Overall Length W/ Ramps226.75"

Overall Length W/O Ramps194.5"

Drive Under Clearance on Top Lock81"

Drive Through Clearance on Lift85"

Drive through Clearance under Lift98"

Drive on Runway Length 185"

Runway Width 20"

Aluminum Ramp Length38"

Runway Height 5.5"

Width Between Runways 38.5"

Outside to Outside Runway Width78"

Min Breaker Size20AMP
